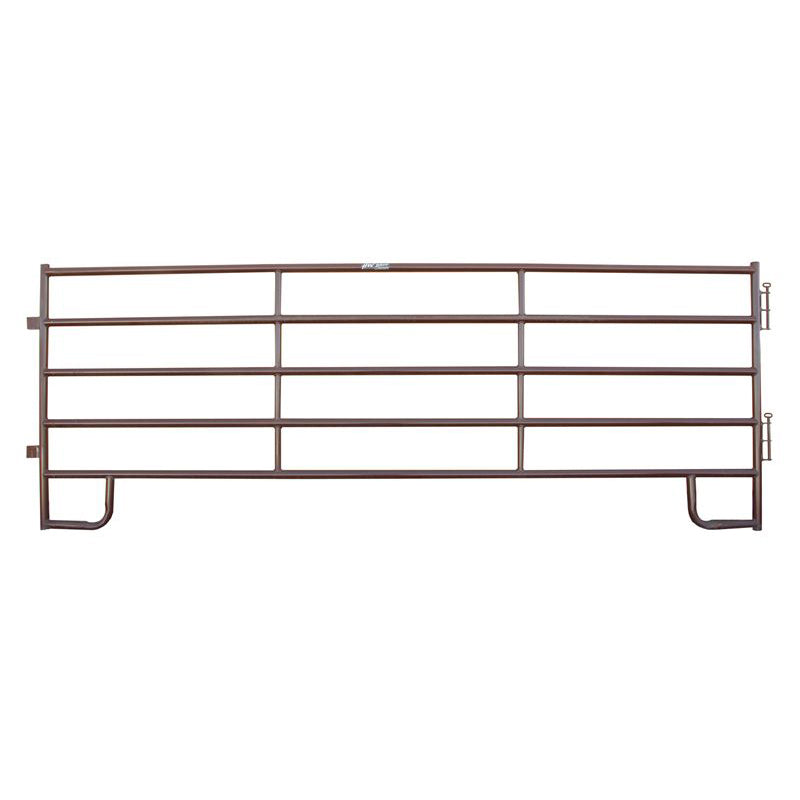

HB560 Heavy Duty Panel

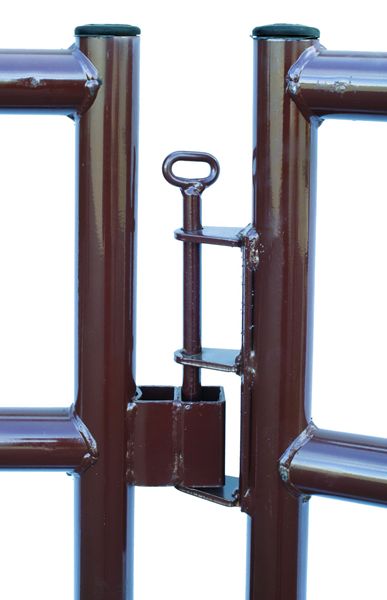

Our Heavy Duty Panels are ideal for feedlots, working arenas, and calving barns. Heavy duty panels are built with square corners and have 12" mud legs. Heavy vertical end posts are 2", 14 gauge tubing and horizontal rails are 2", 16 gauge. Vertical braces are 1 1/2", 16 gauge fully mitered. All heavy duty panels have a pin-and-clip connection system. The double female connector makes three-way connections possible without any additional hardware.
- Panel Size: Ranging from 8 ft to 16 ft
- Rails: 5 rail
- Height: 60 in
- Vertical Tube Thickness: 14 gauge
- Horizontal Tube Thickness: 16 gauge
- Verticals: 1 for panel sizes 8ft to 12ft, 2 for larger panels
